Review of Bavaria 30 Cruiser

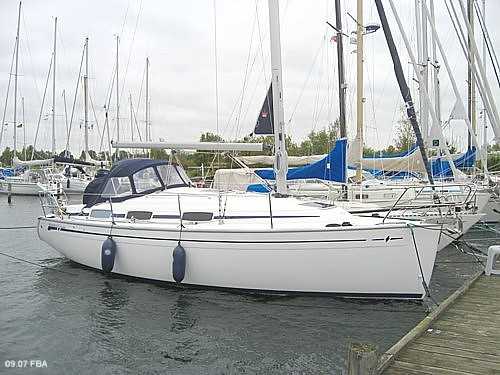

Bavaria 30 Cruiser
Bavaria 30 Cruiser. Bavaria 30 Cruiser

Basic specs.

sail specifications
The Bavaria 30 Cruiser is built by the German yard Bavaria Yachtbau GmbH.

Looking for a new boat? Find a Bavaria 30 Cruiser or similar boat for sale

Hull
Both the hull and the deck is made of fibreglass. Generally, a hull made of fibreglass requires only a minimum of maintenance during the sailing season. And outside the sailing season, just bottom cleaning and perhaps anti-fouling painting once a year - a few hours of work, that's all.

Interior
The boat is equipped with 3 cabins and 6 berths.

Keel

The boat can enter most marinas as the draft is just about 1.56 - 1.66 meter (5.12 - 5.42 ft) dependent on the load. See immersion rate below.


Engine

Bavaria 30 Cruiser is typically equipped with an inboard Yanmar 2GM20C diesel engine at 18.0 hp (13 kW), which gives a max speed about 5.4 knots.

The transmission is a saildrive.

The fuel tank has a capacity of 90.0 liters (23 US gallons, 19 imperial gallons).


Sailing characteristics

This section covers widely used rules of thumb to describe the sailing characteristics. Please note that even though the calculations are correct, the interpretation of the results might not be valid for extreme boats.

Stability and Safety

What is Capsize Screening Formula (CSF)?

The capsize screening value for Bavaria 30 Cruiser is 2.06, indicating that this boat would not be accepted to participate in ocean races.


Theoretical Maximum Hull Speed

What is Theoretical Maximum Hull Speed?

The theoretical maximal speed of a displacement boat of this length is 7.0 knots. The term "Theoretical Maximum Hull Speed" is widely used even though a boat can sail faster. The term shall be interpreted as above the theoretical speed a great additional power is necessary for a small gain in speed.


Immersion rate

The immersion rate is defined as the weight required to sink the boat a certain level. The immersion rate for Bavaria 30 Cruiser is about 181 kg/cm, alternatively 1018 lbs/inch.
Meaning: if you load 181 kg cargo on the boat then it will sink 1 cm. Alternatively, if you load 1018 lbs cargo on the boat it will sink 1 inch.


Sailing statistics

This section is statistical comparison with similar boats of the same category. The basis of the following statistical computations is our unique database with more than 26,000 different boat types and 350,000 data points.

Motion Comfort Ratio

What is Motion Comfort Ratio (MCR)?

The Motion Comfort Ratio for Bavaria 30 Cruiser is 21.3.

Low High 38% 0 50 100
Comparing this ratio with similar sailboats show that it is more comfortable than 38% of all similar sailboat designs. This comfort value is just below average.


L/B (Length Beam Ratio)

What is L/B (Length Beam Ratio)?

The l/b ratio for Bavaria 30 Cruiser is 2.83.

Slim Wide 79% 0 50 100
Compared with other similar sailboats it is more spacy than 79% of all other designs. It seems that the designer has chosen a significantly more spacy hull design.


Ballast Ratio

What is a Ballast Ratio?

The ballast ratio for Bavaria 30 Cruiser is 26%.

Low High 2% 0 50 100
This ballast ratio shows a righting moment that is higher than 2% of all similar sailboat designs. A righting moment (ability to resist heeling) significantly below average.


D/L (Displacement Length Ratio)

What is Displacement Length Ratio?

The DL-ratio for Bavaria 30 Cruiser is 208 which categorizes this boat among 'light crusers & offshore racers'.

Heavy Light 73% 0 50 100
73% of all similar sailboat designs are categorized as heavier. A light displacement requires less sailarea and has higher accellerations.


Maintenance

Bottom Paint

When buying anti-fouling bottom paint, it's nice to know how much to buy. The surface of the wet bottom is about 30m2 (322 ft2).
Based on this, your favourite maritime shop can tell you the quantity you need.

Note: If you use a paint roller you will need more paint than if you use a paintbrush.


Rig

If you need to renew parts of your running rig and is not quite sure of the dimensions, you may find the estimates computed below useful.



Guiding dimensions of running rig
UsageLengthDiameter
Jib sheet 9.3 m(30.6 feet)12 mm(1/2 inch)
Genoa sheet 9.3 m(30.6 feet)12 mm(1/2 inch)
Mainsheet 23.3 m(76.4 feet)12 mm(1/2 inch)
Spinnaker sheet20.5 m(67.3 feet)12 mm(1/2 inch)

Boat owner's ideas

This section shown boat owner's changes, improvements, etc. Here you might find inspiration for your boat.

Do you have changes/improvements you would like to share? Upload a photo and describe what to look for.



Finally

We are always looking for new photos. If you can contribute with photos for Bavaria 30 Cruiser it would be a great help.

If you have any comments to the review, improvement suggestions, or the like, feel free to contact us. Criticism helps us to improve.
